Robust Box Packaging Conveyor Checkweigher Automatic Rejector Integrated System JZ-W3kg

Name: Robust Box Packaging Conveyor Checkweigher Automatic Rejector Integrated System JZW3kg
Brand: JUZHUO
Price: 4 USD

China Robust Box Packaging Conveyor Checkweigher Automatic Rejector Integrated System JZ-W3kg factory

Place of Origin : Guangdong, China

warranty : 1year

Machine material : SUS304

display type : 10" color touch screen

MOQ : 1

HBM load cell : (original from Germany)

Brand Name : JUZHUO

type : Checkweigher

Price : $4,680

Model Number : JZ-W3kg

conveyor speed : 13-96meter/minutes

conveyor belt size : 1800L*500W*1600H mm

waterproof : IP66

Power Supply : 220V

customized support : OEM, ODM, OBM

accuracy : 0.1 g, +/-1grams

Contact Now

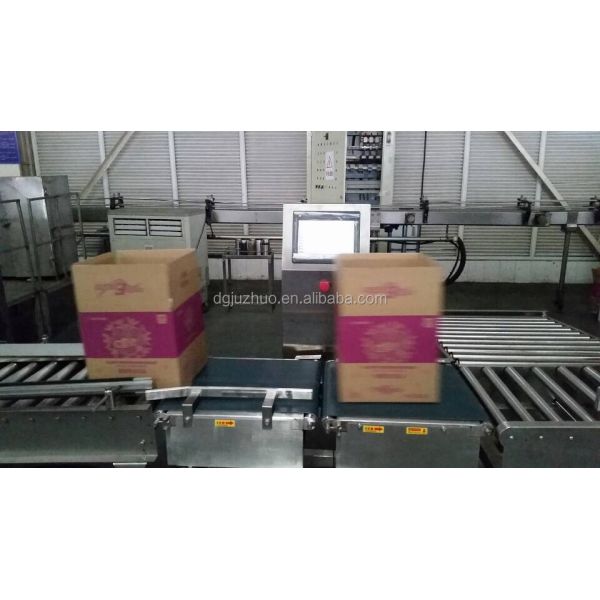

Box Packing Check Weigher JZ-W3kg

Product Overview

Automatic check weigher machine with pusher rejector designed for box packing applications. This belt checkweigher verifies whether individual package weights conform to preset specifications and automatically removes overweight and underweight products using various rejection devices.

Applications

Primarily used to verify single pack weight compliance with preset standards. Automatically removes non-conforming products while qualified bags proceed to downstream equipment.

Key Features

PLC and 10" color touch screen with intelligent compact design
Automatic program setting adjustment for enhanced stability and ease of operation
HBM load cell (original from Germany) ensures high accuracy and stability
Solid SUS304 structure provides stable performance and precise weighing
Multiple rejection options: reject arm, air blast, or pneumatic pusher
Tool-free belt disassembly for easy cleaning
Emergency switch installation for user-friendly operation
Optional arm device for clear production status visualization
Capacity to record up to 10 different product parameters

Technical Specifications

Model	JZ-W3kg
Control System	10" color touch screen
Weighing Range	30-3000 grams
Conveyor Speed	13-96 meters/min
Maximum Throughput Capacity	180 bags/min
Accuracy	±1 grams
Product Size	60<L<420mm; 30<W<250mm; 10<H<330mm
Minimum Scale	0.1 grams
Weigh Belt	500L * 300W mm
Conveyor Height	750mm ±50mm
Auto Rejector System	Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating	IP66
Power Supply	220V/50HZ or 60HZ Single Phase
Machine Material	304 Stainless Steel
Interface	Weight transmission to ink-jet printer (requires customer protocol)
Packing Dimension	1800L * 500W * 1600H mm
Gross Weight	150 KG

Optional Components

Network data management software
Front feeding FBC feedback control software
Printer
Lamp
